The book layout manager

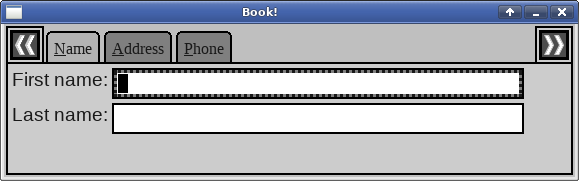

The x::w::booklayoutmanager extends the page layout manager by creating a horizontal strip of "tabs" above the paged container, containing one tab for each page. Clicking on a page's tab automatically opens the tab's page.

The following example is a modified version of pagelayoutmanager that uses the book layout manager. The code that creates a button to make each page visible gets removed. The book layout manager does that:

/*
** Copyright 2017 Double Precision, Inc.
** See COPYING for distribution information.
*/

#include "config.h"
#include <x/mpobj.H>
#include <x/exception.H>
#include <x/destroy_callback.H>
#include <x/ref.H>
#include <x/obj.H>

#include <x/w/main_window.H>
#include <x/w/gridlayoutmanager.H>
#include <x/w/gridfactory.H>
#include <x/w/booklayoutmanager.H>
#include <x/w/bookpagefactory.H>
#include <x/w/label.H>
#include <x/w/text_param_literals.H>
#include <x/w/button.H>
#include <x/w/input_field.H>
#include <x/w/input_field_config.H>
#include <x/w/canvas.H>

#include <iostream>
#include "close_flag.H"

/*
** Create:
**
**    First name: _____________________________
**     Last name: _____________________________
**
** Returns the "first name" x::w::input_field
*/

static void name_tab(const x::w::container &container)
{
	x::w::gridlayoutmanager glm=container->get_layoutmanager();

	auto f=glm->append_row();

	f->halign(x::w::halign::right).create_label("First name:");

	x::w::input_field_config config;

	config.autoselect=true;

	// The first focusable field on this page. Store it in the container's
	// appdata, for convenient access later.
	//
	// The new input field is a child element of the container. Only
	// callbacks that get attached to display elements are restricted
	// from capturing references to any parent or child elements, because
	// this creates a circular reference.
	//
	// Container own references to the elements in the container. Here,
	// we store a reference to the input field, in its container. This is
	// fine. When the container goes out of scope and gets destroyed, this
	// reference goes away as well.
	//
	// Every display element has an appdata x::ptr, that the library does
	// not use otherwise, and is available for applications to attach
	// x::ptrs or x::refs to reference-counted objects that are derived
	// from x::obj, and constructed with create().

	container->appdata=f->create_input_field("", config);

	f=glm->append_row();

	f->halign(x::w::halign::right).create_label("Last name:");
	f->create_input_field("", config);
}

/*
** Create:
**
**    Address: _____________________________
**             _____________________________
**       City: ______ State: ___ Zip: ________

** Returns the first "Address" x::w::input_field
*/

static void address_tab(const x::w::container &container)
{
	x::w::gridlayoutmanager glm=container->get_layoutmanager();

	auto f=glm->append_row();

	f->halign(x::w::halign::right).create_label("Address:");

	x::w::input_field_config config;

	config.autoselect=true;

	// There are six elements on the last row of the grid, so we
	// need to make the address input fields span 5 columns (the
	// label takes the first column)

	container->appdata=f->colspan(5).create_input_field("", config);

	f=glm->append_row();

	// No label for the 2nd address field, put an empty canvas in there.
	f->create_canvas();

	f->colspan(5).create_input_field("", config); // address2

	f=glm->append_row();

	f->halign(x::w::halign::right).create_label("City:");

	config.columns=20;

	f->create_input_field("", config);

	// No alignment is typically needed for State: and Zip: labels,
	// but just in case a theme makes the two big input fields wider
	// than the four elements, and the grid stretches the elements in
	// last row to align everything up, this will make things look
	// better.
	f->halign(x::w::halign::right).create_label("State:");

	config.columns=3;

	f->create_input_field("", config);

	f->halign(x::w::halign::right).create_label("Zip:");

	config.columns=11;

	f->create_input_field("", config);
}

/*
**    Phone: _______________________
**
** Returns the phone x::w::input_field
*/

static void phone_tab(const x::w::container &container)
{
	x::w::gridlayoutmanager glm=container->get_layoutmanager();

	auto f=glm->append_row();

	f->create_label("Phone:");

	x::w::input_field_config config;

	config.autoselect=true;

	container->appdata=f->create_input_field("", config);
}

/*
** Creator lambda for the book layout manager, factored out of
** create_mainwindow() for readability.
**
** Returns a tuple of three x::w::input_field-s, the first x::w::input_field
** on each of the three containers that get added to the book layout
** manager.
*/
static void create_book(const x::w::booklayoutmanager &pl)
{
	/*
	** append() returns a factory that appends new pages to the book.
	*/
	x::w::bookpagefactory new_page=pl->append();

	/*
	** The book layout manager is an extended version of the page
	** layout manager, and halign() and valign() serves the same
	** purpose as they do with the page layout manager.
	**
	** The major difference between page layout manager's pagefactory
	** and book layout manager's bookpagefactory is that
	** new pages get created by add().
	*/

	new_page->halign(x::w::halign::left).valign(x::w::valign::top)
		.add(// The tab's label, an x::w::text_param
		     {"underline"_decoration,
				     "A",
				     "no"_decoration,
				     "ddress"},

		     // The second parameter constructors the page element.

		     [&]
		     (const x::w::factory &page_factory)
		     {
			     auto container=page_factory->create_container
				     ([]
				      (const auto &container)
				      {
					      address_tab(container);
				      },
				      x::w::new_gridlayoutmanager{});

			     container->show_all();
		     },

		     // The third parameter to add() is optional, and specifies
		     // an x::w::shortcut for this page.

		     {"Alt", 'A'});


	/*
	** Like the pagefactory, the same bookpagefactory can be used to
	** add multiple pages.
	*/

	new_page->add({
			"underline"_decoration,
				"P",
				"no"_decoration,
				"hone"},
		[&]
		(const x::w::factory &page_factory)
		{
			page_factory->create_container
				([&]
				 (const auto &container)
				 {
					 phone_tab(container);
				 },
				 x::w::new_gridlayoutmanager{})
				->show_all();
		},
		{"Alt", 'P'});

	/*
	** And, similar to the pagefactory, the insert() method adds new
	** pages before an existing page.
	*/
	new_page=pl->insert(0);

	/*
	** The page's tab doesn't have to be a plain text label, it can
	** be an arbitrary display element. This is done by omitting the
	** first parameter to add(), and the lambda callback takes two
	** factories, one for the tab, one for the page.
	*/
	new_page->halign(x::w::halign::left).valign(x::w::valign::top)
		.add([&]
		     (const x::w::factory &tab_factory,
		      const x::w::factory &page_factory)
		     {
			     /*
			     ** Providing the text label to add() directly
			     ** is equivalent to calling create_label() on the
			     ** first factory, and show()ing the label.
			     */
			     tab_factory->create_label
				     ({
					     "underline"_decoration,
					     "N",
					     "no"_decoration,
					     "ame"})->show();

			     /*
			     ** And the second parameter is the same page
			     ** factory, that creates the page element normally.
			     */
			     page_factory->create_container
				     ([&]
				      (const auto &container)
				      {
					      name_tab(container);
				      },
				      x::w::new_gridlayoutmanager{})
				     ->show_all();
		     },
		     {"Alt", 'N'});

	/*
	** The initial state of the paged container: make element #0
	** visible.
	*/
	pl->open(0);

	/*
	** The on_opened callback gets invoked whenever a new page gets
	** opened. We pointedly install it after the call to open(0), and
	** not before. At this point the entire window is not visible yet,
	** so attempting to move the input focus won't accomplish anything
	** useful.
	*/

	pl->on_opened
		([]
		 (ONLY IN_THREAD,
		  const x::w::book_status_info_t &info)
		 {
			 // Page number that was opened.

			 size_t n=info.opened;

			 auto page=info.lock.layout_manager->get_page(n);

			 // In name_tab(), address_tab(), and phone_tab(),
			 // we stashed away the first input field on each
			 // page here.

			 x::w::input_field f=page->appdata;

			 // So, after each page gets opened, we automatically
			 // move keyboard input focus here.

			 f->request_focus();
		 });
}

/*
** The main_window creator lambda, factored out for readability.
*/
static void create_mainwindow(const x::w::main_window &mw)
{
	x::w::gridlayoutmanager glm=mw->get_layoutmanager();

	auto gf=glm->append_row();

	/*
	** On the first row we create a focusable container using a
	** new_booklayoutmanager.
	**
	** Book layout manager's containers must be created with
	** create_focusable_container(), because the book layout manager
	** takes care of some focusable elements.
	*/

	auto book=gf->create_focusable_container
		([&]
		 (const auto &s)
		 {
			 x::w::booklayoutmanager pl=s->get_layoutmanager();

			 create_book(pl);
		 },
		 x::w::new_booklayoutmanager{});

	book->show();
}

void testbook()
{
	x::destroy_callback::base::guard guard;

	auto close_flag=close_flag_ref::create();

	auto mw=x::w::main_window::create([]
					  (const auto &mw)
					  {
						  create_mainwindow(mw);
					  });

	mw->set_window_title("Book!");
	mw->set_window_class("main",
			     "book@examples.w.libcxx.com");

	guard(mw->connection_mcguffin());

	mw->on_disconnect([]
			  {
				  exit(1);
			  });

	mw->on_delete([close_flag]
		      (ONLY IN_THREAD,
		       const auto &ignore)
		      {
			      close_flag->close();
		      });

	mw->show();

	close_flag->wait();
}

int main(int argc, char **argv)
{
	try {
		testbook();
	} catch (const x::exception &e)
	{
		e->caught();
		exit(1);
	}
	return 0;
}

The book layout manager has a slightly different process for creating new pages. Both the page layout manager and the book layout manager have append() and insert() methods. x::w::pagelayoutmanager's append() and insert() methods return a factory that directly creates display elements, with each display element becoming a new page. x::w::booklayoutmanager's append() and insert() methods return a meta-factory object.

The book page factory

x::w::bookpagefactory new_page=layout_manager->append();

new_page->add("Tab",
              []
	      (const x::w::factory &page_factory)
              {

              },
              // Optional shortcut
              {"Alt", 'X'});

x::w::booklayoutmanager's append and insert methods return an x::w::bookpagefactory which is an intermediate object, and not a factory itself. Each call to x::w::bookpagefactory's add() method creates a new page. add() takes a closure, or a callable object, as a parameter parameter.

There are two overloaded versions of add(). The first version takes a x::w::text_param parameter that sets the new page's tab as a short text string. Its second parameter is a callable object or a closure that creates the new page. The second version takes only the callable object, or a closure, but the closure's parameters are two factories. The extra factory is for creating the new page's tab. Instead of a text string, the tab can be any non-focusable display element. The second version of add()'s parameters are a factory for creating the display element for the new page's tab, and a factory for creating the new display element for the new page (same parameter as the first version of add()).

For either version of add(), the closure must create exactly one display element using each one of its factory parmeters. For the second version of add() the closure may create the two display elements in either order.

Another optional parameter to add() is a keyboard x::w::shortcut for opening the corresponding page.
