Chapter 27. The pane layout manager

Index

Pane container's size
Creating new panes
Removing panes
Input focus and selection lists or tables
Configuring lists and tables in panes
Panes with synchronized lists
Preserving and restoring pane sizes

The pane layout manager is another way to conserve valuable window real estate and share a small amount of it with multiple widgets.

The pane layout manager controls the widgets in its container by placing them in one vertical column, or one horizontal row. Each widget becomes a pane. Draggable dividers separate the panes. The dividers look like thick dashed lines. These dividers drag and slide in both directions. Dragging the dividing sliders visually adjusts the relative sizes of the panes on either side of the divider, accordingly. A pane on one side gets smaller, and the other pane gets larger. The panes effectively share the same visual area, with dividers giving individual panes larger by borrowing the visual real estate from neighboring panes.

The pane layout manager also provides scroll-bars for each pane when the pane's widget is larger than the pane's current size.

Passing an x::w::new_panelayoutmanager to a factory's create_focusable_container() creates a container with a x::w::panelayoutmanager. The panes are placed in a vertical column by default, with the container getting automatically sized to accomodate the widest pane. Invoking x::w::new_panelayoutmanager's horizontal() results in horizontally-oriented panes, with the container getting automatically sized to accomodate the tallest pane.

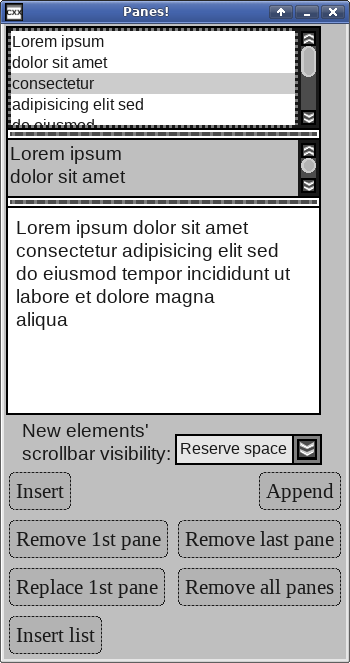

panelayoutmanager.C creates a vertical set of panes and gives an example of using the pane layout manager. Running this example with the -h parameter creates a horizontal set of panes.

/*
** Copyright 2017-2019 Double Precision, Inc.
** See COPYING for distribution information.
*/

#include "config.h"
#include <x/mpobj.H>
#include <x/exception.H>
#include <x/destroy_callback.H>
#include <x/ref.H>
#include <x/obj.H>
#include <x/config.H>
#include <x/w/main_window.H>
#include <x/w/gridlayoutmanager.H>
#include <x/w/gridfactory.H>
#include <x/w/focusable_container.H>
#include <x/w/panelayoutmanager.H>
#include <x/w/panefactory.H>
#include <x/w/pane_appearance.H>
#include <x/w/button.H>
#include <x/w/label.H>
#include <x/w/standard_comboboxlayoutmanager.H>
#include <x/w/screen_positions.H>
#include <x/w/listlayoutmanager.H>
#include <x/w/canvas.H>

#include <string>
#include <iostream>
#include <sstream>

#include "close_flag.H"
#include "panelayoutmanager.H"

static void insert(const x::w::container &c,
		   x::w::scrollbar_visibility v);
static void append(const x::w::container &c,
		   x::w::scrollbar_visibility v);
static void remove_first(const x::w::container &c);
static void remove_last(const x::w::container &c);
static void replace_first(const x::w::container &c,
			  x::w::scrollbar_visibility v);
static void insert_list(const x::w::container &c);
static void replace_all(const x::w::container &c,
			  x::w::scrollbar_visibility v);

// Translate the currently selected item in the scrollbar visibility combo-box
// to an x::w::scrollbar_visibility value.

static x::w::scrollbar_visibility
get_scrollbar_visibility(const x::w::container &container)
{
	x::w::standard_comboboxlayoutmanager lm=
		container->get_layoutmanager();

	auto selected=lm->selected();

	size_t i=selected ? *selected:0;

	static const x::w::scrollbar_visibility values[]={
		x::w::scrollbar_visibility::never,
		x::w::scrollbar_visibility::always,
		x::w::scrollbar_visibility::automatic,
		x::w::scrollbar_visibility::automatic_reserved
	};

	return values[i];
}

static void create_main_window(const x::w::main_window &mw,
			       const options &opts,
			       const x::w::screen_positions &pos)
{
	// Create a container that uses the pane layout manager.
	//
	// x::w::new_panelayoutmanager's constructor takes an x::w::dim_arg
	// parameter, that specifies the container's size.
	//
	// The minimum size is 10mm, the default (initial) size is 50,
	// and the maximum size is 100 mm:

	x::w::new_panelayoutmanager npl{{10,50,100}};

	// Restore the previous panes, if there were any.

	npl.restore(pos, "main_pane");

	if (opts.horizontal->value)
		npl.horizontal();

	x::w::gridlayoutmanager layout=mw->get_layoutmanager();
	auto factory=layout->append_row();

	auto pane=factory->colspan(2)
		.halign(x::w::halign::fill)
		.create_focusable_container
		([&]
		 (const auto &pane_container) {
			 // Initially empty
			 //
			 // In most cases the panes are predetermined, and
			 // they'll get initialized here.

			 // For demonstration purposes, if there were any
			 // previously-saved panes, we'll create the same
			 // number of panes here.
			 //
			 // In order for restore() to work correctly, the
			 // same number of panes that were saved must be
			 // created in the new pane container's creator
			 // lambda, so we do this here.

			 for (size_t i=0; i<npl.restored_sizes.size(); ++i)
				 append(pane_container,
					x::w::scrollbar_visibility
					::automatic_reserved);
		}, npl);

	pane->show();

	// Create a combo-box for choosing the visibility of the next
	// created pane's scroll-bar.

	factory=layout->append_row();

	factory->halign(x::w::halign::right)
		.valign(x::w::valign::bottom)
		.create_label("New elements'\nscrollbar visibility:")->show();

	auto scrollbar_visibility=
		factory->valign(x::w::valign::bottom)
		.create_focusable_container
		([&]
		 (const auto &c)
		 {
			 x::w::standard_comboboxlayoutmanager lm=
			 c->get_layoutmanager();

			 lm->append_items({ "Hide",
					 "Always",
					 "When needed",
					 "Reserve space"});

			 lm->selected(3, true);
		 },
		 x::w::new_standard_comboboxlayoutmanager{});

	scrollbar_visibility->show();

	// Create buttons that perform various pane operations.

	factory=layout->append_row();

	factory->halign(x::w::halign::left);
	auto b=factory->create_button("Insert");

	b->show();
	b->on_activate([pane, scrollbar_visibility]
		       (ONLY IN_THREAD,
			const auto &trigger,
			const auto &busy) {
			       insert(pane, get_scrollbar_visibility
				      (scrollbar_visibility));
		       });

	factory->halign(x::w::halign::right);
	b=factory->create_button("Append");

	b->show();
	b->on_activate([pane, scrollbar_visibility]
		       (ONLY IN_THREAD,
			const auto &trigger,
			const auto &busy) {
			       append(pane, get_scrollbar_visibility
				      (scrollbar_visibility));
		       });

	factory=layout->append_row();

	factory->halign(x::w::halign::left);
	b=factory->create_button("Remove 1st pane");

	b->show();
	b->on_activate([pane]
		       (ONLY IN_THREAD,
			const auto &trigger,
			const auto &busy) {
			       remove_first(pane);
		       });

	factory->halign(x::w::halign::right);
	b=factory->create_button("Remove last pane");

	b->show();
	b->on_activate([pane]
		       (ONLY IN_THREAD,
			const auto &trigger,
			const auto &busy) {
			       remove_last(pane);
		       });

	factory=layout->append_row();

	factory->halign(x::w::halign::left);
	b=factory->create_button("Replace 1st pane");

	b->show();
	b->on_activate([pane, scrollbar_visibility]
		       (ONLY IN_THREAD,
			const auto &trigger,
			const auto &busy) {
			       replace_first(pane, get_scrollbar_visibility
					     (scrollbar_visibility));
		       });

	factory->halign(x::w::halign::right);
	b=factory->create_button("Remove all panes");

	b->show();
	b->on_activate([pane]
		       (ONLY IN_THREAD,
			const auto &trigger,
			const auto &busy) {
			       	x::w::panelayoutmanager
					lm=pane->get_layoutmanager();

				lm->remove_all_panes();
		       });

	factory=layout->append_row();

	// The sample UI for lists in panes doesn't work quite well with
	// horizontal panes. It's designed for vertical panes.

	if (opts.horizontal->value)
	{
		// Empty spacer in its place.
		factory->create_canvas()->show();
	}
	else
	{
		factory->halign(x::w::halign::left);
		b=factory->create_button("Insert list");

		b->show();
		b->on_activate([pane]
			       (ONLY IN_THREAD,
				const auto &trigger,
				const auto &busy) {
				       insert_list(pane);
			       });
	}
	factory->halign(x::w::halign::right);

	b=factory->create_button("Replace All");

	b->show();
	b->on_activate([pane, scrollbar_visibility]
		       (ONLY IN_THREAD,
			const auto &trigger,
			const auto &busy) {
			       replace_all(pane, get_scrollbar_visibility
					   (scrollbar_visibility));
		       });

}

static void insert(const x::w::container &c,
		   x::w::scrollbar_visibility v)
{
	x::w::panelayoutmanager lm=c->get_layoutmanager();

	// insert_panes() returns a factory that creates new panes before
	// an existing pane. Create a new pane before the first existing
	// pane.
	x::w::panefactory f=lm->insert_panes(0);

	// Custom pane appearance. Set the pane's initial size.

	x::w::const_pane_appearance custom=f->appearance->modify
		([v]
		 (const x::w::pane_appearance &custom)
		 {
			 // "size" specifies the new element's
			 // "virtual" size, in millimeters:

			 custom->size=20.0;

			 // The actual size of the pane container gets set
			 // when the pane layout manager's container gets
			 // created. It's given as the parameter to
			 // x::w::new_panelayoutmanager's constructor, and the
			 // size of the container does not vary outside of
			 // this preset size.
			 //
			 // Adding a new element to the container only
			 // expands the container up to its maximum size. If
			 // it exceeds it, all existing elements in the pane
			 // container get resized proportionately to their
			 // existing size and the size specified by
			 // set_initial_size().
			 //
			 // So, for example, if the pane container is full
			 // and its already at its maximum size of 20
			 // millimeters, and this new element's 20 millimeter
			 // makes the new total size of 40, and all elements,
			 // including the new element's size gets cut in half
			 // since the pane's size is limited to 20 mm total.


			 // The pane's appearance's size setting sets the
			 // initial size of the new page.
			 // pane_scrollbar_visibility specifies when and how
			 // the pane's scroll-bar is visible. This, and other,
			 // appearance properties get set before creating a
			 // new display element, which then becomes the
			 // new pane.
			 //
			 // Repeatedly using the same factory to create
			 // multiple display elements creates a new pane
			 // for each one; however all pane  properties get
			 // reset back to their default values, and must be
			 // explicitly set before creating each new pane.

			 custom->pane_scrollbar_visibility=v;
		 });

	f->appearance=custom;

	f->create_label("Lorem ipsum\n"
			"dolor sit amet\n"
			"consectetur\n"
			"adipisicing elit sed\n"
			"do eiusmod\n"
			"tempor incididunt ut\n"
			"labore et\n"
			"dolore magna\n"
			"aliqua");

	// We know that the label is element #0. get() returns the existing
	// element in the pane container. size(), see below, returns the number
	// of elements in the container.

	x::w::label l=lm->get(0);

	// create_label() created a new label. Like all display elements
	// it's necessary to show() it, in order to make it visible.
	//
	// This song and dance routine is just for demonstration purposes.
	// ->show()-ing the returned create_label() is sufficient.

	l->show();
}

static void append(const x::w::container &c,
		   x::w::scrollbar_visibility v)
{
	x::w::panelayoutmanager lm=c->get_layoutmanager();

	// append_factory() returns a factory that adds a new pane after all
	// existing panes, if any.

	x::w::panefactory f=lm->append_panes();

	// pane_appearance's background_color is a new background color for the
	// new pane, either an explicit x::w::rgb value, or a name of a theme-
	// specified color.
	//
	// padding settings specify non-default padding for the new pane.

	f->appearance=f->appearance->modify
		([v]
		 (const auto &custom)
		 {
			 custom->background_color="100%";
			 custom->left_padding=custom->right_padding=
				 custom->top_padding=custom->bottom_padding=2.0;
			 custom->pane_scrollbar_visibility=v;
		 });

	f->create_label("Lorem ipsum "
			"dolor sit amet\n"
			"consectetur "
			"adipisicing elit sed\n"
			"do eiusmod "
			"tempor incididunt ut\n"
			"labore et "
			"dolore magna\n"
			"aliqua")->show();
}

// remove_pane() removes an existing pane from the contanier.

static void remove_first(const x::w::container &c)
{
	x::w::panelayoutmanager lm=c->get_layoutmanager();

	if (lm->size() > 0)
		lm->remove_pane(0);
}

static void remove_last(const x::w::container &c)
{
	x::w::panelayoutmanager lm=c->get_layoutmanager();

	auto s=lm->size();

	if (s > 0)
		lm->remove_pane(s-1);
}

static void replace_first(const x::w::container &c,
			  x::w::scrollbar_visibility v)
{
	x::w::panelayoutmanager lm=c->get_layoutmanager();

	// replace_panes() returns a factory that replaces an existing
	// pane with the new pane, rather than inserting or appending a new
	// pane.
	//
	// The sliders in the container adjust the relative sizes of the
	// panes on their sides. The pane sizes are constrained only by
	// the sizes of the entire container, and it's possible for a pane
	// to grow larger than the display element in the pane.
	//
	// Additionally, the width of a vertical pane (and the height
	// of a horizontal pane) gets sized to accomodate the widest/tallest
	// pane.
	//
	// horizontal_alignment and vertical_alignment control the position
	// of the new element in its pane, when there's extra space for it.

	x::w::panefactory f=lm->replace_panes(0);

	f->appearance=f->appearance->modify
		([v]
		 (const auto &custom)
		 {
			 custom->background_color="100%";
			 custom->left_padding=custom->right_padding=
				 custom->top_padding=custom->bottom_padding=2.0;
			 custom->pane_scrollbar_visibility=v;

			 custom->vertical_alignment=x::w::valign::bottom;
		 });

	f->create_label("Lorem ipsum "
			"dolor sit amet\n"
			"consectetur "
			"adipisicing elit sed\n"
			"do eiusmod "
			"tempor incididunt ut\n"
			"labore et "
			"dolore magna\n"
			"aliqua")->show();
}

static void replace_all(const x::w::container &c,
			x::w::scrollbar_visibility v)
{
	x::w::panelayoutmanager lm=c->get_layoutmanager();

	// replace_all_panes() is equivalent to calling
	// the pane layout manager's remove_all_panes()
	// followed by append_panes().

	x::w::panefactory f=lm->replace_all_panes();

	// Custom appearance for new panes:

	auto custom=f->appearance->modify
		([v]
		 (const auto &custom)
		 {
			 custom->background_color="100%";
			 custom->left_padding=custom->right_padding=
				 custom->top_padding=custom->bottom_padding=2.0;
			 custom->pane_scrollbar_visibility=v;
		 });

	// It's possible to use the same factory to create multiple panes,
	// which we do in the following loop.
	//
	// After each new pane gets created, the factory's appearance gets
	// reset to the default appearance, so that's why on each iteration
	// of the loop it's necessary to explicitly set f->appearance to our
	// custom appearance.
	//
	// This is a basic example of caching an appearance object. It's good
	// practice to create stock appearance objects in advance and cache
	// them, then use them each time creating a display element that uses
	// that appearance, instead of creating a new appearance object
	// each time.

	for (int i=0; i<2; ++i)
	{
		f->appearance=custom;

		f->create_label("Lorem ipsum "
				"dolor sit amet\n"
				"consectetur "
				"adipisicing elit sed\n"
				"do eiusmod "
				"tempor incididunt ut\n"
				"labore et "
				"dolore magna\n"
				"aliqua")->show();
	}

}


// Focusable containers get automatically incorporated into the pane's
// internal tabbing order of its sliders and scroll-bars. This is especially
// useful with selection lists.
//
// The "insert list" button is useful only with selection lists.

static void insert_list(const x::w::container &c)
{
	x::w::panelayoutmanager lm=c->get_layoutmanager();

	x::w::panefactory f=lm->insert_panes(0);

	// Each pane element can be a container, containing other elements.
	//
	// Create a focusable container with a selection list.

	x::w::new_listlayoutmanager nlm;

	// Update both the pane factory's settings and the new list
	// layout manager settings for optimal results for a list in
	// a container with the pane layout manager.
	//
	// configure_new_list()'s parameter is either an
	// x::w::new_listlayoutmanager or an x::w::new_tablelayoutmanager.

	f->configure_new_list(nlm);

	// configure_new_list() installs new appearance objects for the
	// both the new pane, and the list.
	//
	// The pane factory's appearance object gets set to
	// x::w::pane_appearance::base::focusable_list().
	//
	// The new layout manager's appearance object gets set to either
	// x::w::list_appearance::base::list_pane_theme() or
	// x::w::list_appearance::base::table_pane_theme().
	// Any existing appearance objects in the pane factory and the
	// x::w::new_listlayoutmanager, they get replaced.
	//
	// Therefore we must modify() a custom appearance object only after
	// we configure_new_list().

	f->appearance=f->appearance->modify
		([]
		 (const auto &custom)
		 {
			 custom->size=20.0;
		 });

	f->create_focusable_container
		([]
		 (const auto &container)
		 {
			 x::w::listlayoutmanager lm=
				 container->get_layoutmanager();

			 lm->append_items({
					 "Lorem ipsum",
					 "dolor sit amet",
					 "consectetur",
					 "adipisicing elit sed",
					 "do eiusmod",
					 "tempor incididunt ut",
					 "labore et",
					 "dolore magna",
					 "aliqua"});
		 },
		 nlm)->show();
}

void testpane(const options &opts)
{
	x::destroy_callback::base::guard guard;

	auto close_flag=close_flag_ref::create();

	// Restore previous window position and size.

	auto configfile=
		x::configdir("panelayoutmanager@examples.w.libcxx.com")
		+ "/windows";

	auto pos=x::w::screen_positions::create(configfile);

	x::w::main_window_config config;

	config.restore(pos, "main");

	auto main_window=x::w::main_window
		::create(config,
			 [&]
			 (const auto &mw)
			 {
				 create_main_window(mw, opts, pos);
			 });

	main_window->set_window_title("Panes!");
	main_window->set_window_class("main", "testpane@examples.w.libcxx.com");

	guard(main_window->connection_mcguffin());

	main_window->on_disconnect([]
				   {
					   exit(1);
				   });

	main_window->on_delete
		([close_flag]
		 (ONLY IN_THREAD,
		  const auto &ignore)
		 {
			 close_flag->close();
		 });

	main_window->show();

	x::mpcobj<bool>::lock lock{close_flag->flag};
	lock.wait([&] { return *lock; });

	// Save window position and size.

	main_window->save(pos);
	pos->save(configfile);
}

int main(int argc, char **argv)
{
	try {
		options opts;

		opts.parse(argc, argv);

		testpane(opts);
	} catch (const x::exception &e)
	{
		e->caught();
		exit(1);
	}
	return 0;
}

Pane container's size

x::w::new_panelayoutmanager npl{
   x::w::dim_axis_arg{10, 50, 100}
};

x::w::new_panelayoutmanager's constructor takes one parameter, aa x::w::dim_axis_arg. This sets the the pane container's size. The pane container's size gets constrained with the bounds set by this parameter. Adding new panes and removing existing panes from the container adjusts its size strictly within these bounds. If they get exceeded, the individual panes' sizes get proportionately scaled to keep the overall container's size within the specified bounds.
