Chapter 28. The peephole layout manager

Index

Creating a peephole
Specifying the peephole's size
Ensuring visibility of widgets in a peephole

The peephole layout manager is another way to conserve valuable window real estate, and share just a small amount of it with multiple widgets.

The peephole layout manager servers as a foundation for the UI that uses scroll-bars (usually) to move a small peephole that brings different portions of a larger widget into view. The peephole container always has one widget. This widget, the peepholed widget can be bigger than the peephole itself. The peephole layout manager scrolls different parts of the peepholed widget into view, as needed.

Passing an x::w::new_scrollable_peepholelayoutmanager to a factory's create_focusable_container() creates a container with a x::w::peepholelayoutmanager. The peephole layout manager draws a border and scroll-bars that move the peephole's view of the peepholed widget.

Using x::w::new_peepholelayoutmanager with a factory's create_container() is a more light-weight alternative. This results in a plain widget, with no borders or scroll-bars. The light-weight peephole moves only in response to tabbing the keyboard input focus to a different focusable widget in the peephole, making it visible; or by explicitly ensuring the visibility of a specific widget in the peephole.

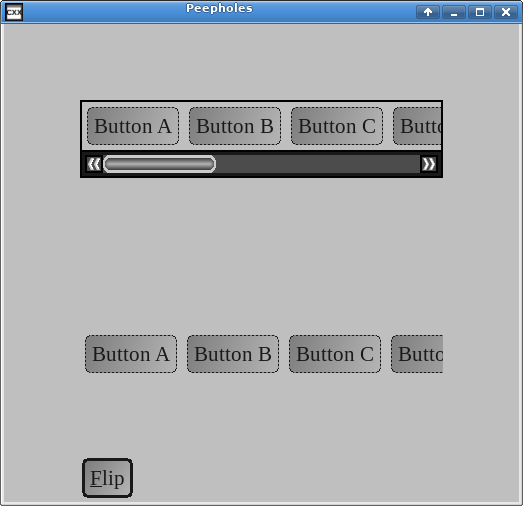

In either case, the peephole container had a single, peepholed widget. This peepholed widget is usually, itself, a container with multiple widgets. peepholelayoutmanager.C gives an example of creating two peepholes: a fully-scrollable one and a plain one. A row of ten buttons gets placed into each peephole:

/*
** Copyright 2019-2021 Double Precision, Inc.
** See COPYING for distribution information.
*/

#include "config.h"
#include "close_flag.H"

#include <x/exception.H>
#include <x/destroy_callback.H>
#include <x/appid.H>

#include <x/w/main_window.H>
#include <x/w/peepholelayoutmanager.H>
#include <x/w/gridlayoutmanager.H>
#include <x/w/gridfactory.H>
#include <x/w/container.H>
#include <x/w/focusable_container.H>
#include <x/w/button.H>
#include <x/w/canvas.H>
#include <x/w/text_param_literals.H>
#include <x/w/shortcut.H>

#include <iostream>
#include <sstream>

std::string x::appid() noexcept
{
	return "peepholelayoutmanager.examples.w.libcxx.com";
}

// Peepholed contents. Both peepholes use the grid layout manager.

// Create a single row of ten buttons.
void create_peepholed_buttons(const x::w::container &c)
{
	auto glm=c->gridlayout();

	auto f=glm->append_row();

	for (int i=0; i<10; ++i)
	{
		std::ostringstream o;

		o << "Button " << (char)('A'+i);

		f->create_button(o.str());
	}
}

// Peephole layout manager callback. This gets passed to
// new_scrollable_peepholelayoutmanager or new_peepholelayoutmanager's
// constructor, below, to create the peepholed contents.

void create_peepholed_container(const x::w::factory &f)
{
	f->create_container(create_peepholed_buttons,
			    x::w::new_gridlayoutmanager{});
}

// The contents of the main window.
void create_peepholes(const x::w::main_window &mw)
{
	x::w::gridlayoutmanager glm=mw->get_layoutmanager();

	// Two rows, one peephole on each row.

	auto f=glm->append_row();

	// Ample padding.

	f->padding(20);

	x::w::new_scrollable_peepholelayoutmanager
		nsplm{create_peepholed_container};

	// Peephole's width.
	nsplm.width({20, 100, 300});

	f->colspan(2).create_focusable_container
		([]
		 (const x::w::focusable_container &c)
		 {
			 // Unused
		 },
		 nsplm);

	// A row for the 2nd peephole, also padded.

	f=glm->append_row();

	f->padding(20);

	x::w::new_peepholelayoutmanager nplm{create_peepholed_container};

	nplm.width({20, 100, 300});

	// This is a plain peephole, no scroll-bars. Help things along by
	// centering the display element with the keyboard focus, if its
	// tabbed to.
	nplm.scroll=x::w::peephole_scroll::centered;

	auto bottom_peephole=
		f->colspan(2).create_container([]
					       (const x::w::container &c)
					       {
						       // Unused
					       },
					       nplm);

	// The "Flip" button on the last row, with an ALT-F shortcut.

	f=glm->append_row();
	auto flip_button=f->halign(x::w::halign::center)
		.left_padding(20)
		.create_button
		({
		  "underline"_decoration,
		  "F",
		  "no"_decoration,
		  "lip"
		}, {
			x::w::default_button(),
			x::w::shortcut{"Alt", 'F'},
		});

	// The flip button is not a direct parent or child of the
	// buttom_peephole, so its callback can safely capture it by value.

	flip_button->on_activate
		([bottom_peephole, which=0]
		 (ONLY IN_THREAD,
		  const x::w::callback_trigger_t &trigger,
		  const x::w::busy &mcguffin)
		 mutable
		 {
			 // Clicking on the Flip button alternatively moves
			 // the bottom_peephole's first and last button
			 // into view.
			 //
			 // First, get the peephole layout manager.

			 x::w::peepholelayoutmanager plm=
				 bottom_peephole->get_layoutmanager();

			 // The peepholed container, that uses the grid
			 // layout manager.

			 x::w::container c=plm->get();

			 auto glm=c->gridlayout();

			 // The buttons are all in row 0.
			 //
			 // ensure_entire_visibility() of the first or the
			 // last button.
			 x::w::button b=glm->get(0, which);

			 b->ensure_entire_visibility(IN_THREAD);

			 // The next time flip_button gets clicked on,
			 // it will ensure_entire_visibility() of the other
			 // button.
			 which=glm->cols(0)-1-which;
		 });

	// The peepholes specify a minimum, preferred, and maximum size.
	//
	// Having just the reset button on the last row would constrain
	// the peepholes' width. The reset button is small, and doesn't
	// stretch, so with the mere button alone the grid layout manager
	// will limit the width of the grid because of the reset button's
	// fixed width. It's in the same column as the peephole, so the
	// grid layout manager sees that the reset button can't get any
	// wider, and that's that.
	//
	// However we want to be able to resize the peepholes, by resizing
	// the main window. We do this by creating an empty canvas
	// next to the reset button that can stretch, and making the
	// two peepholes span both columns. Now, since the canvas can
	// absorb the extra space, the grid layout manager factors that in,
	// and allows the grid to expand to the maximum width of the
	// peepholes, since the peepholes span both columns, and the canvas's
	// maximum width can expand too.


	// A plain create_canvas() sets its preferred width
	// to 0 pixels. In order to compute the initial
	// default width of the grid we need to make
	// the canvas's preferred width the same 100
	// millimeters as the peepholes'.
	//
	// So we need to use the overloaded create_canvas()
	// that takes a x::w::canvas_config parameter.

	x::w::canvas_config config;

	config.width={0, 100};
	config.height={0};

	f->create_canvas(config);
}

void peepholelayoutmanager()
{
	x::destroy_callback::base::guard guard;

	auto close_flag=close_flag_ref::create();

	auto main_window=x::w::main_window::create(create_peepholes);

	main_window->set_window_title("Peepholes");

	guard(main_window->connection_mcguffin());

	main_window->on_disconnect([]
				   {
					   _exit(1);
				   });

	main_window->on_delete
		([close_flag]
		 (THREAD_CALLBACK,
		  const auto &ignore)
		 {
			 close_flag->close();
		 });

	main_window->show_all();

	x::mpcobj<bool>::lock lock{close_flag->flag};

	lock.wait([&] { return *lock; });
}

int main(int argc, char **argv)
{
	try {
		peepholelayoutmanager();
	} catch (const x::exception &e)
	{
		e->caught();
		exit(1);
	}
	return 0;
}

Creating a peephole

peepholelayoutmanager.C creates two peepholes: a fully scrollable peephole, using x::w::new_scrollable_peepholelayoutmanager together with create_focusable_container(); and a plain peephole, using x::w::new_peepholelayoutmanager together with create_container(). In both cases, their constructors require a callback that takes a factory as a parameter. The callback must use this factory to create exactly one widget, which becomes the peepholed widget:

x::w::new_scrollable_peepholelayoutmanager nsplm{
    []
    (const x::w::factory &peepholed_factory)
    {
        peepholed_factory->create_container(
            []
            (const x::w::container &peepholed_container)
            {
                x::w::gridlayoutmanager=peepholed_container->get_layoutmanager();
                // ...
            },
            x::w::gridlayoutmanager{});
    }
};

// Other new_scrollable_peepholelayoutmanager initialization.

f->create_focusable_container(
    []
    (const x::w::focusable_container &)
    {
          // Unused
    },
    nsplm);

In the peephole layout manager's case, create_container()'s and create_focusable_container()'s creator lambdas are generally unused. The only initialization required by a peephole is invoking x::w::new_scrollable_peepholelayoutmanager's or x::w::new_peepholelayoutmanager's factory callback.
