Static tooltips

A regular tooltip appears automatically when the pointer hovers over a widget. The tooltip appears next to the pointer position. See the section called “Tooltips” for a brief example. LibCXXW automatically shows and hides regular tooltips, by itself.

A static tooltip behaves differently:

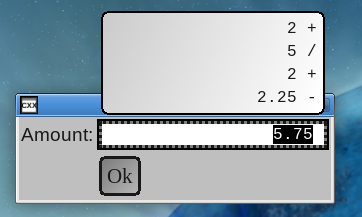

statictooltip.C shows how to use static tooltips to implement a numeric input field with a basic four-function calculator function. A custom input filter in this input field accepts only a numeric value for input, and rounds it to two decimal places. The custom input field also accepts a numeric value followed by +, -, *, /. The filter clears the input field for the next numeric value. Entering the second numeric value followed by a = computes the mathematical operation, and places the end result into the input field.

Multiple mathematical operation get chained together. Typing 10+2*4= results in a 48 (there is no operator precedence, the expression are evaluated left-to-right, adding 10 and 2, then multiplying the result by 4).

The first mathematical operation opens a static tooltip popup above the input field, that records the initial value and the entered mathematical operation. Any subsequent values and operations get added to the tooltip, resulting in something that resembles a ticket tape. = closes the tooltip together with producing the final result. Tabbing out of the input field also closes the tooltip (and aborts the calculation at that point).

/*
** Copyright 2019-2021 Double Precision, Inc.
** See COPYING for distribution information.
*/

#include "config.h"
#include "close_flag.H"

#include <x/exception.H>
#include <x/destroy_callback.H>
#include <x/weakcapture.H>
#include <x/appid.H>

#include <x/w/main_window.H>
#include <x/w/gridlayoutmanager.H>
#include <x/w/gridfactory.H>
#include <x/w/label.H>
#include <x/w/font_literals.H>
#include <x/w/input_field.H>
#include <x/w/input_field_lock.H>
#include <x/w/input_field_filter.H>
#include <x/w/container.H>
#include <x/w/tooltip.H>
#include <x/w/button.H>
#include <x/w/canvas.H>
#include <x/w/text_param_literals.H>

#include <string>
#include <iostream>
#include <sstream>
#include <cmath>
#include <algorithm>
#include <fenv.h>

std::string x::appid() noexcept
{
	return "statictooltip.examples.w.libcxx.com";
}

// Maximum number of digits before the decimal point
//
// The maximum size of the input field is NDIGITS+3, for the decimal point
// and two digits after the decimal point.

#define NDIGITS 9
#define NPREC 2

template<size_t n>
constexpr uint64_t pow10()
{
	return pow10<n-1>()*10;
}

template<>
constexpr uint64_t pow10<0>()
{
	return 1;
}

// Object shared by callbacks that implements the behavior of the input field.

// The behavior implemented by the callbacks:
//
// A filter callback filters input to accept only numeric values, but also
// keep an eye out if a "+", "-", "*", or "/" was typed. This specifies
// a mathematical operator.
//
// Entering a mathematical operator takes the entered numeric value, saves it,
// and clears the input field for the next numeric value, which is followed
// by an "=", which carries out the mathematical operation and shows the
// result.
//
// Instead of a "=", typing another mathematical operator also executes the
// first mathematical operation, but then saves the result, and restarts the
// process with clearing the input field for the next numeric value.
//
// This implements a simple four-function calculator. Nothing fancy, and no
// concept of mathematical precedence. Just basic, linear, calculations.
//
// The first mathematical operator opens a static tooltip above the input
// field, that records each mathematical value and the operator, like a
// ticker tape, for visual feedback. The static tooltip gets automatically
// closed by the "=", or if the calculation is aborted by tabbing out of the
// input field, or losing the input focus in any way.

class amount_fieldObj : virtual public x::obj {

public:

	// The weak pointer to the input field. Because the callbacks capture
	// this object by value, a weak pointer to the input field must be
	// stored here, in order to avoid a circular reference:
	//
	// 1. The input field owns references to the callbacks.
	//
	// 2. Callbacks capture a reference to this amount_field object.
	//
	// 3. Callbacks invoke methods here, that need to use the input field.
	//
	// The weak pointer avoids the circular reference.

	x::weakptr<x::w::input_fieldptr> input_field;

	amount_fieldObj(const x::w::input_field &input_field)
		: input_field{input_field}
	{
	}

	~amount_fieldObj()=default;

	// Format double value to NPREC digits of precision.

	static std::string round_value(double n)
	{
		// TODO: when g++ implements std::to_chars() for
		// doubles.

		auto s=std::to_string(n);

		auto p=s.find('.');

		if (p == s.npos)
		{
			p=s.size();
			s += ".";
		}
		return (s+std::string{NPREC, '0'}).substr(0, p+(NPREC+1));
	}

	// Take whatever was entered and converted to a double, round it,
	// and make sure it fits into the field.

	static std::optional<double> validate(double n)
	{
		n=std::round(n*pow10<NPREC>())/pow10<NPREC>();

		// Make sure this value fits.
		if (round_value(n).size() <= NDIGITS+NPREC+1)
			return n;

		return std::nullopt;
	}

	// See if the given string matches our format.

	static std::optional<double> try_validate(const std::string &s)
	{
		std::istringstream i{s};
		double v;

		i >> v;

		if (!i.fail())
		{
			i.get();
			if (i.eof())
				return validate(v);
		}

		return std::nullopt;
	}

	// The next mathematical operator is represented by a function pointer
	// to one of these:

	static double add(double a, double b)
	{
		return a+b;
	}

	static double sub(double a, double b)
	{
		return a-b;
	}
	static double mul(double a, double b)
	{
		return a*b;
	}

	static double div(double a, double b)
	{
		return a/b;
	}

	// This input field's on_filter() callback.

	// Validates changes to the input field: either numeric entry, or
	// typing in one of the special characters representing an
	// operation triggers this behavior.

	void filter(ONLY IN_THREAD,
		    const x::w::input_field_filter_info &info)
	{
		// First step, is to recover a strong ref to the field.
		auto field=input_field.getptr();

		if (!field)
			return;

		// Cursor movement, we don't need to do anything

		if (info.type == x::w::input_filter_type::move_only)
			return;

		// Check for special cases we recognize: -, +, *, or /
		// typed when:
		//
		// 1) The cursor is at the end of the field.
		//
		// 2) The field's contents are non-empty
		//
		// Have to take pains, like this, to ensure that
		// negative numbers can be entered with "-" normally.

		if (info.new_contents.size() == 1 && info.size > 0 &&
		    info.starting_pos->pos() == info.size)
		{
			// Before one of these operators, we better already
			// have a valid numeric value, here.

			auto v=try_validate(x::w::input_lock{field}.get());

			if (v)
			{
				double (*op)(double, double)=nullptr;

				// This is what we recognize.
				switch (info.new_contents[0]) {
				case '-':
					op=&sub;
					break;
				case '+':
					op=&add;
					break;
				case '*':
					op=&mul;
					break;
				case '/':
					op=&div;
					break;
				case '=':
					final_op(IN_THREAD, field, info, *v);
					return;
				}

				if (op)
				{
					char descr[2]=
						{
						 (char)info.new_contents[0],
						 '\0'
						};

					next_op(IN_THREAD, field,
						info, op, *v, descr);
					return;
				}
			}
		}

		// Not a special operator. Validate numeric input.

		// First pass. If new text is getting inserted, it
		// must consists of all digits and at most one
		// decimal point, and consist of digits 0-9, and
		// an optional leading dash.

		bool first_pos=true;
		size_t dots=0;

		for (auto c:info.new_contents)
		{
			if (c == '-' && first_pos)
				;
			else if (c == '.')
				++dots;
			else if (c < '0' || c > '9')
				return;
			first_pos=false;
		}

		if (dots > 1)
			return;

		// Second pass, a more thorough check.

		// Compute, in advance, the new contents of the
		// input field, what update() would do.

		auto contents=x::w::input_lock{field}.get();

		auto starting_pos=info.starting_pos->pos();
		auto ending_pos=starting_pos+info.n_deleted;
		contents=contents.substr(0, starting_pos)

			// new_contents is a std::u32string, but we
			// checked it, above.
			+ std::string
			{
			 info.new_contents.begin(),
			 info.new_contents.end()
			} + contents.substr(ending_pos);

		// If the new contents are empty, or if they pass validation,
		// the proposed change is acceptable.
		if (contents.empty() || contents == "-" ||
		    try_validate(contents))
			info.update();
	}

	// The input field's on_keyboard_focus callback.

	// Determine if the input field lost keyboard focus, then close
	// the static tooltip, if it exists (and is, presumably, open).

	void keyboard_focus(ONLY IN_THREAD,
			    x::w::focus_change change)
	{
		// First step, is to recover a strong ref to the field.
		auto field=input_field.getptr();

		if (!field)
			return;

		if (!x::w::in_focus(change))
			close_tooltip(IN_THREAD, field);
	}

private:

	// Static tooltip, and the latest goings on there.

	struct static_tooltip_info {
		x::w::container tooltip; //< The static tooltip itself.

		// The accumulated value of the operation.
		double accumulator;

		// The most recently entered operator.
		double (*op_func)(double, double);
	};

	// The currently shown static tooltip.
	std::optional<static_tooltip_info> opened_tooltip;

	// Execute the next mathematical operation.

	// This is invoked in two circumstances. In either case, the
	// tooltip is open with a saved accumulated value, and the next
	// operation, and the next mathematical operand value gets passed
	// in. The saved operator func, op_func() gets invoked with the
	// saved accumulated value, and the next mathematical operand value.
	//
	// The next operand value was entered into the input field, followed
	// by an operator or '='. In the first case, the result of the
	// saved operation becomes the new accumulated value, and the next
	// operator gets saved as the new op_func. In the second case,
	// the result of the saved operation becomes the final value in the
	// input field, and the static tooltip popup gets closed.
	//
	// new_value gets set to the result of the mathematical operation,
	// and execute_next_op() returns the rounded result of the
	// mathematical operation, or a nullopt if a mathematical exception
	// occurred.
	//
	// In this manner, the four-function calculation gets carried out
	// using full double precision, but the input field ends up showing
	// the rounded result.

	std::optional<double> execute_next_op(double next_operand,
					      double &new_value)
	{
		fenv_t orig_fenv;

		// We need to intelligently detect mathematical exceptions,
		// and reject the operations.

		if (feholdexcept(&orig_fenv) || !opened_tooltip)
			return std::nullopt;

		new_value=(*opened_tooltip->op_func)
			(opened_tooltip->accumulator, next_operand);

		auto math_except=fetestexcept(FE_ALL_EXCEPT & ~FE_INEXACT);
		feclearexcept(FE_ALL_EXCEPT);
		fesetenv(&orig_fenv);

		if (math_except)
			return std::nullopt;

		return validate(new_value);
	}

	// A mathematical operation was requested.

	// If this is the first one, we open the static tooltip, and save
	// the initial value and operation there; and subsequent operations
	// get appended there.

	void next_op(ONLY IN_THREAD,
		     const x::w::input_field &field,
		     const x::w::input_field_filter_info &info,
		     double (*op_func)(double, double),
		     double value,
		     const char *op_descr)
	{
		// Prepare the line to add to the opened tooltip.

		std::ostringstream o;

		o << value << " " << op_descr;

		if (!opened_tooltip)
		{
			// First operation, create the static tooltip.

			x::w::static_tooltip_config config;

			// Specify that the static tooltip gets positioned
			// above the input field.
			config.affinity=x::w::attached_to::above_or_below;

			auto tooltip=field->create_static_tooltip
				(IN_THREAD,
				 [&]
				 (const x::w::container &c)
				 {
					 auto glm=c->gridlayout();
					 auto f=glm->append_row();

					 f->halign(x::w::halign::right);

					 f->create_label({
							  "mono"_theme_font,
							  o.str(),
						 });
				 },
				 // Optional parameter, an (not really)
				 // aggregate parameter than specifies the
				 // tooltip's layout manager (defaults to
				 // the grid layout manager, and the tooltip's
				 // settings. Either one or the other
				 // values may be left out of the fake
				 // aggregate parameter.
				 {
					 x::w::new_gridlayoutmanager{},
					 config
				 });

			tooltip->show_all();

			// Save the initial value and the first operator.
			opened_tooltip={tooltip, value, op_func};
		}
		else
		{
			// Tooltip already open, another operator.

			// First, execute the previous operator.

			double new_value;

			auto ret=execute_next_op(value, new_value);

			if (!ret)
				return;

			value=*ret;

			// Then, append another line to the tooltip popup.

			auto glm=opened_tooltip->tooltip->gridlayout();

			auto f=glm->append_row();
			f->halign(x::w::halign::right);

			f->create_label({
					 "mono"_theme_font,
					 o.str(),
				})->show();

			// But don't let the tooltip grow indefinitely.
			//
			// Once it exceeds five rows, remove the first row,
			// and replace the now-first row with ellipsis.
			// The next time we end up here this ends up removing
			// the ellipsis, and replacing the next line, now the
			// new first line with ellipsis.

			if (glm->rows() > 5)
			{
				glm->remove_row(0);

				f=glm->replace_cell(0, 0);
				f->halign(x::w::halign::right);
				f->create_label("...")->show();
			}

			// Save the new accumulated value and the next operator
			opened_tooltip->accumulator=new_value;
			opened_tooltip->op_func=op_func;

		}

		// Put the running total/accumulated value into the input field,
		// and select its entirety.
		show_next_value(info, value);
		info.select_all();
	}

	// After executing the next operation, show the running total, rounded
	// in the input field.
	void show_next_value(const x::w::input_field_filter_info &info,
			     double value)
	{
		auto value_str=round_value(value);

		// update() takes a std::u32string. We're plain ASCII.

		info.update(info.starting_pos->begin(),
			    info.starting_pos->end(),
			    std::u32string{value_str.begin(),
				    value_str.end()
			    });
	}

	// '=' was typed in.

	// If the tooltip is open, execute the last entered operation.

	void final_op(ONLY IN_THREAD,
		      const x::w::input_field &field,
		      const x::w::input_field_filter_info &info,
		      double value)
	{
		if (!opened_tooltip)
			return;

		double new_value;

		auto ret=execute_next_op(value, new_value);

		if (!ret)
			return;

		show_next_value(info, *ret);
		close_tooltip(IN_THREAD, field);
	}

	// Close the tooltip

	void close_tooltip(ONLY IN_THREAD, const x::w::input_field &field)
	{
		if (opened_tooltip)
		{
			// Removing the tooltip consists of calling
			// the input field's remove_tooltip(). We also
			// clear the std::optional that holds the tooltip
			// info, which includes our own reference to the
			// static tooltip container popup.

			field->remove_tooltip(IN_THREAD);
			opened_tooltip.reset();
		}
	}
};

typedef x::ref<amount_fieldObj> amount_field;

x::w::validated_input_field<double>
create_mainwindow(const x::w::main_window &main_window,
		  const close_flag_ref &close_signal)
{
	auto layout=main_window->gridlayout();

	layout->row_alignment(0, x::w::valign::middle);

	x::w::gridfactory factory=layout->append_row();

	factory->create_label("Amount:");

	x::w::input_field_config config{NDIGITS+NDIGITS+NPREC+1+1};
	// 1 more for cursor.

	config.alignment=x::w::halign::right;
	config.maximum_size=NDIGITS+NPREC+1;
	config.direction=x::w::bidi::left_to_right;

	// In some circumstances the entire contents of the input field
	// is select_all()ed, so flip this flag to drop the selection when
	// the input field loses its input focus.

	config.autodeselect=true;

	auto field=factory->create_input_field("", config);

	// Install an input field validator, to conveniently convert what's
	// typed in into a double value.

	x::w::validated_input_field<double>
		validated_value=field->set_string_validator<double>(
			[]
			(ONLY IN_THREAD,
			 const std::string &value,
			 std::optional<double> &parsed_value,
			 x::w::input_lock &lock,
			 const x::w::callback_trigger_t &trigger)
			{
				if (parsed_value)
				{
					// Official input field validator
					// borrows the validator from
					// amount_fieldObj.
					auto res=amount_fieldObj::validate(
						*parsed_value
					);

					if (res)
					{
						parsed_value=res;
						return;
					}
				}
				else
				{
					if (value.empty())
					{
						parsed_value=0;
						return;
					}
				}

				parsed_value.reset();
			},
			[]
			(double n)
			{
				auto s=amount_fieldObj::round_value(n);

				// Return an empty string instead of 0.00

				if (std::find_if(s.begin(), s.end(),
						 []
						 (char c)
						 {
							 return c != '0' &&
								 c != '.';
						 }) == s.end())
					s="";
				return s;
			}
		);

	// Create the amount_field object that manages this input_field,
	// and install all the callbacks that do the heavy lifting.

	auto this_amount_field=amount_field::create(field);

	field->on_filter
		([this_amount_field]
		 (ONLY IN_THREAD,
		  const x::w::input_field_filter_info &info)
		 {
			 this_amount_field->filter(IN_THREAD, info);
		 });

	field->on_keyboard_focus
		([this_amount_field]
		 (ONLY IN_THREAD,
		  x::w::focus_change change,
		  const x::w::callback_trigger_t &trigger)
		 {
			 this_amount_field->keyboard_focus(IN_THREAD, change);
		 });

	// "Ok" button on the next row.

	factory=layout->append_row();
	factory->create_canvas();
	auto ok=factory->create_button("Ok", {
			x::w::default_button(),
			x::w::shortcut('\n'),
		});

	ok->on_activate([close_signal]
			(ONLY IN_THREAD,
			 const x::w::callback_trigger_t &trigger,
			 const x::w::busy &ignore)
			{
				close_signal->close();
			});

	return validated_value;
}

void statictooltip()
{
	x::destroy_callback::base::guard guard;

	auto close_flag=close_flag_ref::create();

	x::w::validated_input_fieldptr<double> validator;

	auto main_window=x::w::main_window::create
		([&]
		 (const auto &main_window)
		 {
			 validator=create_mainwindow(main_window, close_flag);
		 });

	main_window->on_disconnect([]
				   {
					   _exit(1);
				   });

	guard(main_window->connection_mcguffin());

	main_window->set_window_title("Calculator");
	main_window->on_delete
		([close_flag]
		 (ONLY IN_THREAD,
		  const x::w::busy &ignore)
		 {
			 close_flag->close();
		 });

	main_window->show_all();

	close_flag->wait();

	auto value=validator->value();

	std::cout << "Final value: ";

	if (!value)
		std::cout << "(none)";
	else
		std::cout << *value;

	std::cout << std::endl;
}

int main(int argc, char **argv)
{
	try {
		statictooltip();
	} catch (const x::exception &e)
	{
		e->caught();
		exit(1);
	}
	return 0;
}

Creating and destroying static tooltips

x::w::static_tooltip_config config;

config.affinity=x::w::attached_to::above_or_below;

x::w::container tooltip=
    widget->create_static_tooltip([&]
                                   (const x::w::container &c)
                                   {
                                       x::w::gridlayoutmanager glm=
                                           c->get_layoutmanager();

                                       // ...
                                   },
                                   {
                                       x::w::new_gridlayoutmanager{},
                                       config
                                   });

// ...

tooltip->show_all();

// ...

widget->remove_tooltip();

It is necessary to explicitly create static tooltips, represented as generic containers, before making them visible. A widget's create_static_tooltip() method creates a static tooltip for the widget.

Note

A widget has either a regular tooltip or a static tooltip, but not both. Creating either kind of a tooltip replaces the widget's existing tooltip, if any.

create_static_tooltip()'s first parameter is the tooltip's creator lambda. The optional second parameter is a variadic template object that specifies several options using uniform initialization syntax. Both of them are optional, but if both exist they must appear in the following order:

Using show or show_all() makes the tooltip visible. Static tooltips appear next to their widget, on their immediate right by default (or to the left if there's no room on the right). This behavior is adjusted by setting x::w::static_tooltip_config's affinity.

Note

Widgets own an internal reference to their tooltips. This must be taken into consideration in order to avoid circular references. This is why statictooltip.C uses weak references, since its callbacks strongly capture the object that carries the data shared by the callbacks, including a weak pointer to their input field. See the section called “Special rules for captured references in callbacks” for more information.
