Chapter 20. Tables

Index

Creating a table layout manager
Using x::w::table_headers()
Adjustable tables
Adjusting table column widths using the keyboard
Preserving table columns' widths
Using the table with the table layout manager.

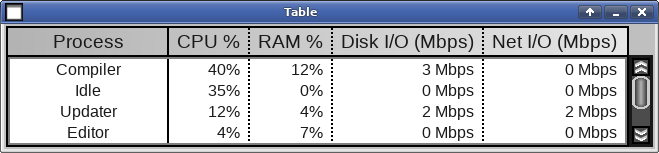

A table is a list with a header row. Tables are derived from lists, and inherit list functions.

/*
** Copyright 2018-2021 Double Precision, Inc.
** See COPYING for distribution information.
*/

#include "config.h"
#include <x/exception.H>
#include <x/destroy_callback.H>
#include <x/ref.H>
#include <x/obj.H>
#include <x/appid.H>

#include <x/w/main_window.H>
#include <x/w/gridlayoutmanager.H>
#include <x/w/gridfactory.H>
#include <x/w/tablelayoutmanager.H>
#include <x/w/label.H>

#include "close_flag.H"

std::string x::appid() noexcept
{
	return "table.examples.w.libcxx.com";
}

struct mondata {
	std::string process;
	int cpu;
	int ram;
	int diskio;
	int netio;
};

static mondata processes[]=
	{
	 {"Compiler", 40, 12, 3, 0},
	 {"Idle", 35, 0, 0, 0},
	 {"Updater", 12, 4, 2, 2},
	 {"Editor", 4, 7, 0, 0},
	 {"Torrent Downloader", 5, 6, 4, 4},
	 {"Backup", 4, 5, 5, 0},
	};

auto create_process_table(const x::w::main_window &mw,
			  const x::w::gridfactory &f)
{
	x::w::new_tablelayoutmanager ntlm{

		x::w::table_headers(
			{
				{"Process", {}},
				{"CPU %", {}},
				{"RAM %", {}},
				{"Disk I/O (Mbps)", {}},
				{"Net I/O (Mbps)", {}}
			})
	};

	// The table layout manager inherits from the list layout manager.
	// Set the selection_type to no-selection_type if the table or the
	// list layout manager is not meant to be used for selecting
	// an element from the list, setting the selection_type to
	// no_selection_type
	ntlm.selection_type=x::w::no_selection_type;

	// No need to set columns, inherited from new_listlayoutmanager.
	// new_tablelayoutmanager's constructor initializes it from the number
	// of the header factories
	//
	// ntlm.columns = 5

	// The col_alignments and column_borders are inherited from
	// new_listlayoutmanager, and can be also set in a
	// new_listlayoutmanager, too.

	ntlm.col_alignments={
			    {0, x::w::halign::center},
			    {1, x::w::halign::right},
			    {2, x::w::halign::right},
			    {3, x::w::halign::right},
			    {4, x::w::halign::right},
	};

	// Borders before the corresponding column. Border #1 specifies the
	// border that separates columns 0 and 1.

	ntlm.column_borders={
			    {1, "thin_0%"},
			    {2, "thin_dashed_0%"},
			    {3, "thin_dashed_0%"},
			    {4, "thin_dashed_0%"},
	};

	auto c=f->create_focusable_container
		([&]
		 (const x::w::focusable_container &c)
		 {
			 x::w::tablelayoutmanager lm=c->tablelayout();

			 // The tablelayoutmanager inherits from the
			 // listlayoutmanager. Just like with selection lists,
			 // list_item_parms specify new items to be added to
			 // the list.
			 //
			 // Initialize the table.

			 std::vector<x::w::list_item_param> items;

			 items.reserve((std::end(processes)-
					std::begin(processes)) * 5);

			 for (const auto &p:processes)
			 {
				 std::ostringstream cpu, ram, diskio, netio;

				 cpu << p.cpu << "%";

				 ram << p.ram << "%";

				 diskio << p.diskio << " Mbps";

				 netio << p.netio << " Mbps";

				 std::string fields[5]={
							p.process,
							cpu.str(),
							ram.str(),
							diskio.str(),
							netio.str()
				 };

				 items.insert(items.end(),
					      std::begin(fields),
					      std::end(fields));
			 }
			 lm->append_items(items);
		 },
		 ntlm);

	return c;
}

void testlist()
{
	x::destroy_callback::base::guard guard;

	auto close_flag=close_flag_ref::create();

	auto main_window=x::w::main_window::create
		([&]
		 (const auto &main_window)
		 {
			 auto layout=main_window->gridlayout();
			 x::w::gridfactory factory=
				     layout->append_row();

			 create_process_table(main_window, factory);
			 main_window->set_window_title("Table");
		 });

	guard(main_window->connection_mcguffin());

	main_window->on_disconnect([]
				   {
					   exit(1);
				   });

	main_window->on_delete
		([close_flag]
		 (THREAD_CALLBACK,
		  const auto &ignore)
		 {
			 close_flag->close();
		 });

	main_window->show_all();

	close_flag->wait();
}

int main(int argc, char **argv)
{
	try {
		testlist();
	} catch (const x::exception &e)
	{
		e->caught();
		exit(1);
	}
	return 0;
}

Creating a table layout manager

#include <x/w/focusable_container.H>
#include <x/w/tablelayoutmanager.H>

x::w::new_tablelayoutmanager new_table{
    {
       []
       (const x::w::factory &f)
       {
          f->create_label("Column 1")->show();
       },
       []
       (const x::w::factory &f)
       {
          f->create_label("Column 2")->show();
       },
    }};

x::w::focusable_container list=f->create_focusable_container(
       []
       (const x::w::focusable_container &c)
       {
            x::w::tablelayoutmanager tbl=c->get_layoutmanager();
       },
       new_table);

x::w::tablelayoutmanager tblmanager=list->get_layoutmanager();

Passing a x::w::new_tablelayoutmanager to a factory's create_focusable_container() creates a table. The resulting container returned by create_focusable_container(), and passed as a parameter to its creator lambda, uses the x::w::tablelayoutmanager.

x::w::new_tablelayoutmanager is derived from a x::w::new_listlayoutmanager, and a x::w::tablelayoutmanager is derived from a x::w::listlayoutmanager. A table is a list with a header row. The required parameter to x::w::new_tablelayoutmanager's constructor is a vector with creator lambdas for each header column. create_focusable_container calls each closure to create the header for the corresponding column. Each closure receives a factory parameter. The closure uses the factory to create exactly one widget that represents the column's header. The closure should call show() to make the new header widget visible (or show_all() on the table itself).

Note

The header widget should not have a custom background color. The table sets a custom background color for the header row for visual effects when adjusting the table column widths. The table layout manager expects the headers' widgets to inherit their background color from the header row.

table.C uses the x::w::table_headers() helper function to create the header factories. x::w::table_headers()'s parameter is a std::vector of tuples with two values: a text string and a x::w::label_config (which can be default-constructed), and returns a vector of factories that gets passed directly to x::w::new_tablelayoutmanager's constructor.
